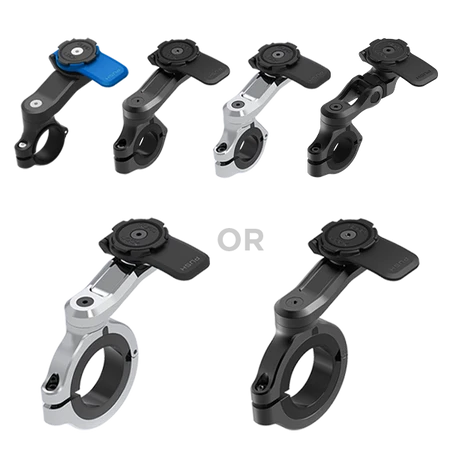

Handlebar Mounts

The Quad Lock Handlebar Mounts offer secure and sleek smartphone mounting for motorcycles, with options for standard and large bars. Featuring a patented dual-stage lock, your smartphone stays secure during your ride. The easy twist-and-lock attachment lets you view GPS or navigation apps with ease. Available in multiple finishes—black glass-filled nylon, black aluminium, or chrome—these mounts seamlessly integrate with your bike’s aesthetic.
Tutorials
FAQ
Whats Included?
HANDLEBAR MOUNT
- 1 x Quad Lock® Index Head (with blue lever)
- 1 x Handlebar Mount Clamp
- 1 x Extension arm
- 3 x Bar spacers
- 1 x Allen (Hex) Key
HANDLEBAR MOUNT PRO
- 1 x Quad Lock® Index Head (with black lever)
- 1 x Handlebar Mount PRO Clamp
- 1 x Extension arm
- 4 x Bar spacers
- 1 x Allen (Hex) Key
HANDLEBAR MOUNT PRO CHROME
- 1 x Quad Lock® Index Head (with black lever)
- 1 x Handlebar Mount PRO Chrome Clamp
- 1 x Chrome Extension arm
- 4 x Bar spacers
- 1 x Allen (Hex) Key
HANDLEBAR MOUNT PRO - LARGE
- 1 x Quad Lock® Index Head (with black lever)
- 1 x Handlebar Mount PRO Clamp - Large
- 1 x Extension arm
- 3 x Bar spacers
- 1 x Allen (Hex) Key
HANDLEBAR MOUNT PRO CHROME - LARGE
- 1 x Quad Lock® Index Head (with black lever)
- 1 x Handlebar Mount PRO Chrome Clamp - Large
- 1 x Chrome Extension arm
- 3 x Bar spacers
- 1 x Allen (Hex) Key
What are your mounts made of?
All of our standard mounts are built from durable glass-filled nylon. Our Pro range of mounts such as the Handlebar Mount Pro and Fork Stem Mount Pro are made with anodized aluminium.
How do I change the color of the Locking Lever on my Handlebar Mount?
Just got a new Quad Lock Colored Lever
and need help installing? No problem!
It's very quick and easy to make the change to your existing mount, all you need is a 3mm Allen (Hex) Key.
Do I need a Vibration Dampener?
We have found that motorbikes with engines of all sizes are capable of producing the high-frequency vibrations that can damage smartphone cameras, so we recommend installing the Vibration Dampener on any Moto Mount, regardless of bike or phone model. You can find the Vibration Dampener here.
What type of Chrome finish was used on the PRO CHROME variant?
Cr(III) - Trivalent Chromium.
Do you make a motorcycle mount for 35mm handle bars?
We definitely do! Our Handlebar Mount Pro now supports 35mm bars! You can view the product page
How can I get more adjustability on my motorcycle mount?
If you're installing our Handlebar Mount on angled bars or just want more adjustability from your motorcycle mount, the Quad Lock Knuckle Adaptor or 360 Single Pivot Arm might be just what you're looking for.
You can achieve twice the adjustability with one of our 360 Dual Pivot Arms. The two ball heads at either end also offer 180 degrees and 360 degrees movement for greater angle options.
These come in two different sizes and feature a thumb screw for easy adjustment on the go, or a hex screw for anti-theft protection.
Are the Handlebar Mounts 360 compatible?
Yes, the Handlebar Mounts are compatible with any of our 360 heads and arms. Since it's part of our 360 range, all components are interchangeable with other 360 parts, allowing you to customise it to suit your needs. You can even build and personalise your setup using our 360 Kit Builder tool, available on our website here.
Can I purchase replacement spacers?
Yes, the links for purchasing replacement spacers are below:
Tech Specs
Handlebar Mount
- Made from tough glass-filled nylon
- Stainless steel hardware
- Fits handlebar diameters: 22mm, 25mm, 28mm, and 32mm (⅞", 1", 1-⅛", and 1-¼")
- 360-degree arm rotation
- Use with or without the extension arm for your preferred setup
- Weight: 59 grams (2.08 oz)
Handlebar Mount Dimensions
Handlebar Mount Pro
- Black anodised aluminium clamp and arm, made by precision CNC
- Assembled with black lever & hardware
- Fits handlebar diameters: 22mm, 25mm, 28mm, 32mm, and 35mm (⅞", 1", 1-⅛", 1-¼", and 1-⅜")
- 360-degree arm rotation
- Use with or without the extension arm for your preferred setup
- Discreet cable route for USB charge cables (remove plug in upper clamp to access)
- Weight: 110 grams (3.88 oz)
Handlebar Mount Pro Chrome
- Chrome-plated aluminium clamp and arm, made by precision CNC
- Assembled with black lever & hardware
- Fits handlebar diameters: 22mm, 25mm, 28mm, 32mm, and 35mm (⅞", 1", 1-⅛", 1-¼", and 1-⅜")
- 360-degree arm rotation
- Use with or without the extension arm for your preferred setup
- Discreet cable route for USB charge cables (remove plug in upper clamp to access)
- Weight: 110 grams (3.88 oz)
Handlebar Mount - Pro Dimensions
Handlebar Mount Pro - Large
- Black anodised aluminium clamp and arm, made by precision CNC
- Assembled with black lever & hardware
- Fits handlebar diameters: 38mm, 44mm, and 51mm (1-½", 1-¾", and 2")
- 360-degree arm rotation
- Use with or without the extension arm for your preferred setup
- Discreet cable route for USB charge cables (remove plug in upper clamp to access)
- Weight: 230 grams (8.11 oz)
Handlebar Mount Pro Chrome - Large
- Chrome-plated aluminium clamp and arm, made by precision CNC
- Assembled with black lever & hardware
- Fits handlebar diameters: 38mm, 44mm, and 51mm (1-½", 1-¾", and 2")
- 360-degree arm rotation
- Use with or without the extension arm for your preferred setup
- Discreet cable route for USB charge cables (remove plug in upper clamp to access)
- Weight: 230 grams (8.11 oz)
Handlebar Mount - Pro Large Dimensions
