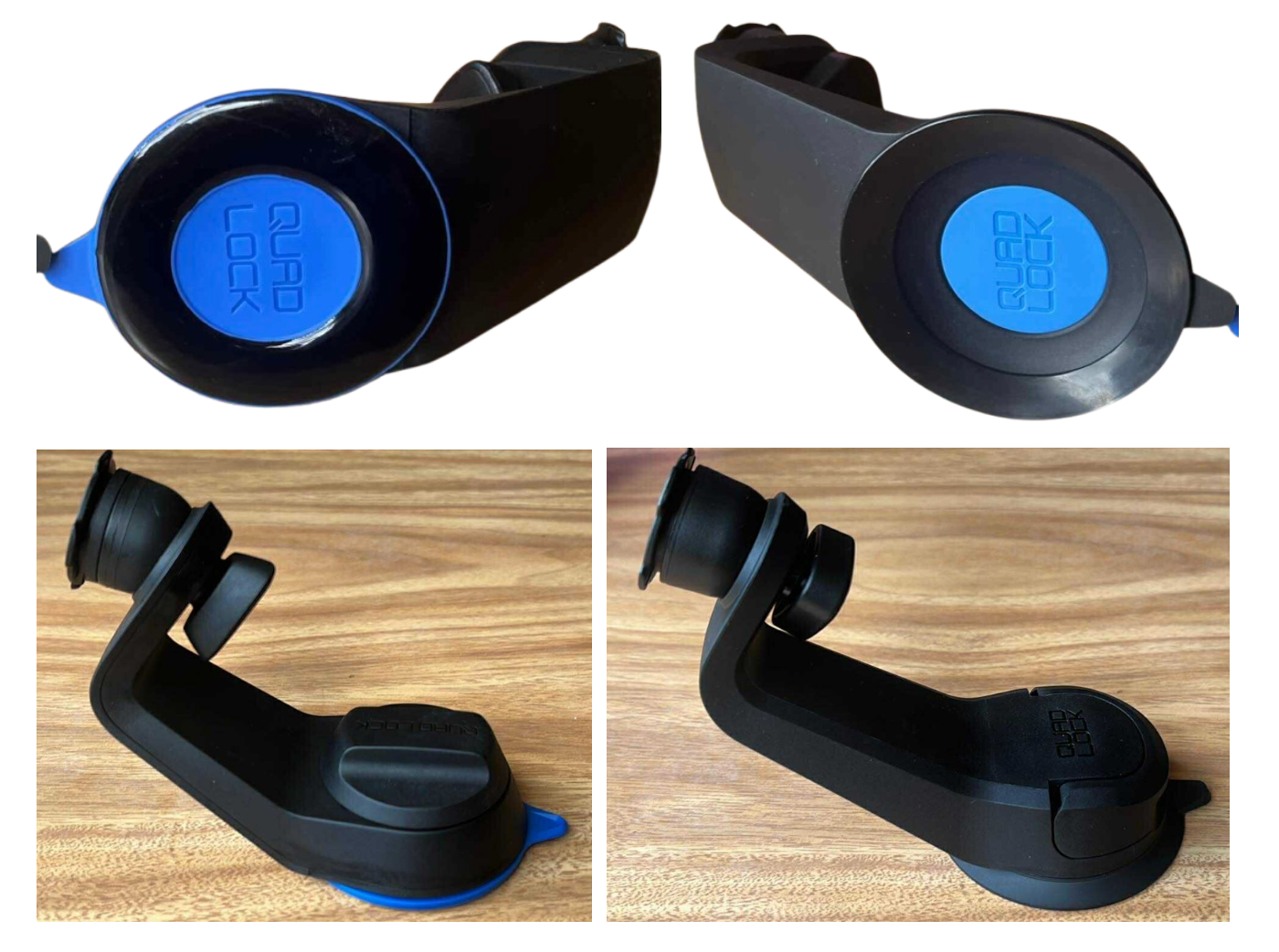

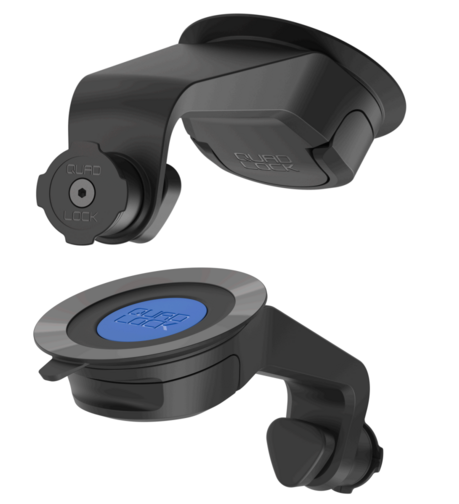

Suction Windscreen/Dash Mount

Index Head Screw:

M5 X 12mm Countersunk Hex Socket Stainless Steel 316 Black

Index Head Screw:

M5 X 12mm Countersunk Hex Socket Stainless Steel 316 Black

• 1 x Quad Lock Suction Windscreen/Dash Mount
• 1 x Quad Lock 360™ Gimbal Head
• 1 x Gimbal locking knob
• 1 x Quad Lock 360™ Top Cap

This mount is designed for use inside vehicles like cars, 4x4s, and SUVs. You can mount it on the windscreen, or on the dashboard using a Quad Lock® Adhesive Dash Pad (sold separately).

It works best on smooth, non-textured, non-porous surfaces, such as:

• Uncoated glass (like most windscreens)
• Plastics like PC or acrylic
• Smooth, painted or powder-coated metal
• Slightly curved surfaces (like most windscreens)

Surfaces it won’t work well on include:

• Textured or fabric dashboards
• Leather, unsealed wood, or soft-touch coatings
• Very curved surfaces (tight radius)

Make sure the surface is clean and dry before installing the mount.

Note: This mount isn’t recommended for:

• Heavy off-road driving
• Vehicles with high-frequency engine vibrations
• Boats or aircraft

For more demanding environments, we recommend the Quad Lock® 360 Suction Base, available via our 360 Kit Builder.

No, this mount is designed specifically for interior motor vehicle use. If you need a mount suitable for aviation, we recommend the Quad Lock® 360 Suction Base, which is tested for use in light aircraft up to 10,000 ft.

1. Flip the lever up to release the suction.
2. Pull the tab on the suction cup to fully detach.
3. Clean both the suction cup and the surface with a damp cloth. Let both dry fully.
4. Reposition the mount where needed and press firmly.
5. Flip the lever down to secure it.
6. To adjust your phone’s angle, attach your phone to the gimbal head, loosen the knob, rotate to your preferred viewing angle, then retighten the knob.
