360 Single Bolt M8 Base
The Quad Lock 360 Single Bolt M8 provides a secure mounting solution for your device, compatible with all Quad Lock 360 arms, heads, and accessories. The bolt base and spacers feature anti-rotation serration for easy installation.
Tutorials
FAQ

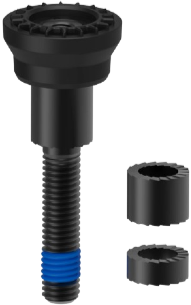

What's Included?
- 1 x Quad Lock 360™ Base Single Bolt - M8
- 1 x 5mm Serrated Spacer
- 1 x 10mm Serrated Spacer
Can I use the Single Bolt Base with other 360 products?
Yes, it is fully interchangeable with the current 360 range of products, including arms, heads and the Vibration Dampener.
Where do I install the Single Bolt M8 Base?
This is the 'handlebar clamp' region of a motorcycle. The screw size here is an M8, which is the size of the Single Bolt Base's screw with threading.
Does the Single Bolt come with spacers?
Yes! The Single Bolt Base comes with two spacers of 53mm and 103mm to adjust the height and depth.
Can I buy the 360 Single Bolt M8 base as part of a kit?
The 360 Single Bolt M8 base can be purchased within the 360 kit builder or separately along with all of our 360 compatible products.
How many times can the bolt with threadlocker be installed?
A total of three times before the thread locker is exhausted, if this occurs we recommend picking up a replacement base as part of our 360 Range.
Tech Specs
360 Base - Single Bolt - M8
- Replaces an M8 bolt
- Anti-rotation serrated M8 bolt base and spacers
- High tensile grade steel bolt
- Low profile installation option when installed without spacers
- Higher profile and clearance of surrounding components when installed with included spacers
- Compatible with all Quad Lock 360™ ARMS, HEADS, and ACCESSORIES
- Weight: 66 grams (2.32 oz)
Dimensions
