Wireless Charging Head
Integrate the Quad Lock® Wireless Charging Head to your Quad Lock® Mount around the home, office or in the car for fast wireless charging.
Tutorials
FAQ
What kind of charge rates should I expect from a wireless charger?
There are many variables which can impact the charge rate of your phone such as battery percentage, applications, having the screen on/off and ambient temperature all have an impact.
Different phone manufacturers also implement different approaches to manage the charge rate in the aim to protect the phone's battery.
Best Case Scenario
We've seen charge rates of 1% increase every 2 minutes or a 30% increase in battery charge every hour.
Worst Case Scenario
You may only see a 1% charge increase every 10 mins. 6% battery level increase in 1 hour.
What are the power adaptor requirements of the Quad Lock Wireless Charging Heads?
To achieve standard charging output of 5W, this requires an adaptor with a minimum output of 5 Volt/2 Amp*
Fast charging output 7.5W & 10W - Requires an adaptor with a minimum output of 9 Volt/1.67 Amp
*Most computer/laptop USB ports output 5V/0.5-0.9A and as such are not recommended for powering the Quad Lock® Wireless Charger. The minimum power requirements are 5V/2A but we recommend the use of a Quick Charge 2.0/3.0/4.0 (9V/1.67A) power supply as it will provide sufficient voltage and current required for fast charging (9V/1.67A).
Why does my phone get hot when using the wireless charger?
Wireless charging is only 70-80% efficient so the additional 20-30% of energy is converted into heat. In normal conditions, this is not usually a problem, however, using the wireless charger in your car in direct sunlight can compound the issue and cause some phones to overheat.
Apple's guide to temperature regulation, which has some crossover with other phone brands, recommends keeping your phone out of direct sunlight or operating in a hot vehicle.
If this happens, remove your phone from the charger and allow it to cool before continuing to charge. If possible, positioning the phone/charger near an A/C vent can help keep the phone and charger cool.
We have further information about expected wireless charging speeds and the effects of heat over here.
Can I use the regular Wireless Charging Head with my Quad Lock MAG Phone Case?
Yes you can! Our MAG Cases still contain the twist-to-lock mechanism, so you're not limited to just the MAG Heads when using a MAG Case.

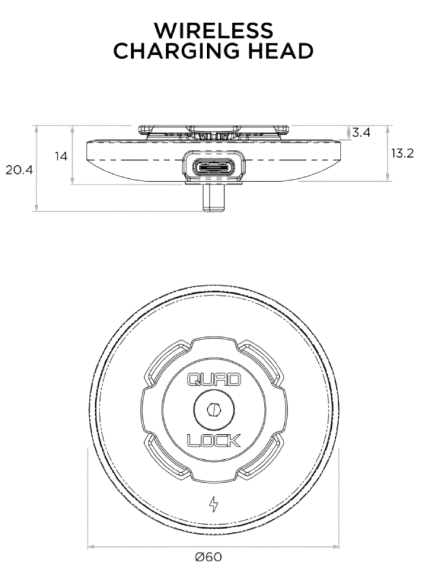

Tech Specs
Wireless Charging Head
- Output: 5W, 7.5W, 10W and 15W fast charging (iPhone up to 7.5W)
- Input: 5V-3A, 9V-2A, 12V-1.5A
- Secure positive locking head
- Glass filled nylon front housing
- Anodised aluminium rear housing
- Black zinc coated stainless steel screw
- Foreign object detection
- Compatible with all Quad Lock® Cases
Please note: Apple devices charge wirelessly at a maximum of 7.5W.
Galaxy devices (newer than S7 and Note10) charge wirelessly at a maximum of 10W.
Pixel devices (newer than Pixel 5) charge wirelessly at a maximum of 15W.
What's Included
The Wireless Charging Head comes with the following:
- 1 x Quad Lock® Wireless Charging Head
- 1 x 1.5M USB-C to USB-A Cable
- 1 x 3mm hex (Allen) key in black finish
- 1 x M5 x 20mm Countersunk head hex socket screw in black
