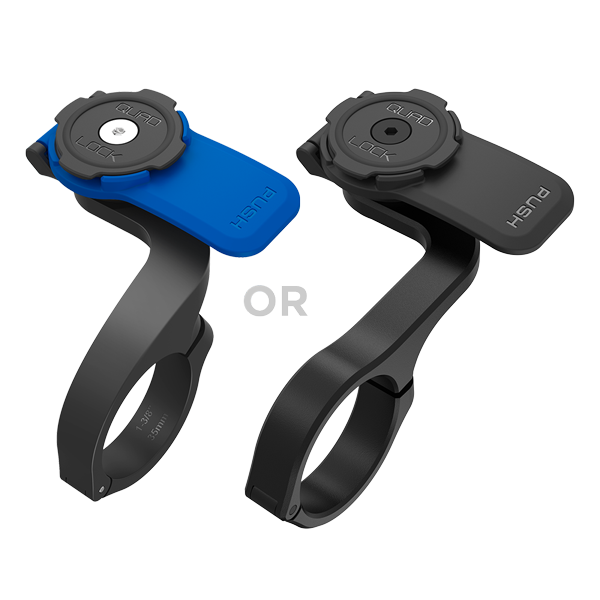

Out Front Mount and Pro

The Quad Lock Out Front Mount and Out Front Mount PRO offer secure, twist-and-lock mounting for your smartphone, keeping it steady no matter the terrain. Designed for easy attachment and detachment. The PRO version features a low-profile, rigid aluminium arm for enhanced aerodynamics, as well as a removable lever head for adjustment & compatibility with our range of accessories, while the standard mount has a slightly higher profile that can be reversed to fit over the stem of your bike’s handlebars.

Tutorials

Out Front Mount and Out Front Mount Pro Installation

FAQ

Whats Included?

OUT FRONT MOUNT

  • 1 x Quad Lock® Out Front Mount
  • 3 x Spacers for 22mm, 25.4mm, and 31.8mm bars (mount suits 35mm bars)
  • 1 x Hex (Allen) Key

OUT FRONT MOUNT PRO

  • 1 x Quad Lock® Out Front Mount PRO
  • 2 x Spacers for 22mm and 25.4mm bars (mount suits 31.8mm bars)
  • 1 x Hex (Allen) Key
What's the difference between the Out Front Mount and the Out Front Mount Pro?

Both mounts are designed for aerodynamics. The Out Front Mount PRO features a lower profile and super rigid anodised aluminium mounting arm. The standard Out Front Mount can be reversed to go over the stem of your bike's handlebars (great for mountain biking to keep the phone protected!)

The Out Front Mount PRO features a removable lever head and 360 feature, meaning it can be swapped out for different heads and accessories from our Quad Lock 360 range. The standard Out Front Mount does not currently have a removable lever head and cannot have accessories added, outside of a coloured lever.

What size bars and stems do the Out Front Mounts fit?

  • The Out Front Mount will fit handlebar diameters of 35mm, 31.8mm, 25.4mm and 22mm.
  • The Out Front Mount Pro fits diameters of 31.8mm, 25.4mm and 22mm.
  • How do I change the color of the Locking Lever on my Out Front Mount?

    Just got a new Quad Lock Colored Lever and need help installing? No problem! It's very quick and easy to make the change to your existing mount, all you need is a 3mm Allen (Hex) Key.

    Can I attach other Quad Lock accessories to the Out Front Mount?

    The standard Out Front Mount has a fixed locking lever, meaning it can't currently be modified with other Quad Lock accessories, beyond changing the coloured lever. This is contrasted by the Out Front Mount PRO, where the lever head can be detached to add different Quad Lock 360 accessories, such as extension arms, a waterproof charging head, or even a vibration dampener if desired.

    Can I use the Vibration Dampener on my Out Front Mount?

    Our Vibration Dampener is only compatible with the Out Front Mount PRO. As bicycles are not subjected to the same high-frequency vibrations that are experienced on motorcycles, we do not recommend installing a Vibration Dampener on your bicycle mount.

    If you're set on using our dampener with an Out Front Mount, this is currently only compatible with the PRO version, as the standard Out Front Mount does not have a removable head for use with our range of accessories.

    Do you make a bicycle mount for 35mm handle bars?

    Yes, we definitely do! Our Out Front Mount now supports 35mm bars! You can view the product page

    Link Example here .

    Tech Specs

    Out Front Mount

    Can be reversed for over stem mounting

    • Suits handlebar diameters: 22mm, 25.4mm, 31.8mm, and 35mm (⅞", 1", 1-¼", and 1-⅜")
    • Stainless steel hardware
    • Glass filled nylon clamp
    • Compatible with Quad Lock® Action Camera Adaptor
    • Compatible with all Quad Lock® Cases and Universal Adaptors
    • Weight: 44 grams (1.55 oz)
    Out Front Mount Dimensions

    Image Description

    Out Front Mount Pro

    Quad Lock Handlebar Mount
    • Suits handlebar diameters: 22mm, 25.4mm, and 31.8mm (⅞", 1", and 1-¼")
    • Black anodised CNC aluminium mounting arm
    • Stainless steel hardware
    • Adjustable mount head
    • Compatible with Quad Lock® Action Cam Adaptor
    • Compatible with all Quad Lock® Cases and Universal Adaptors
    • Weight: 68 grams (2.39 oz)
    Out Front Mount Pro Dimensions

    Image Description
