Saddle Rail Adaptor

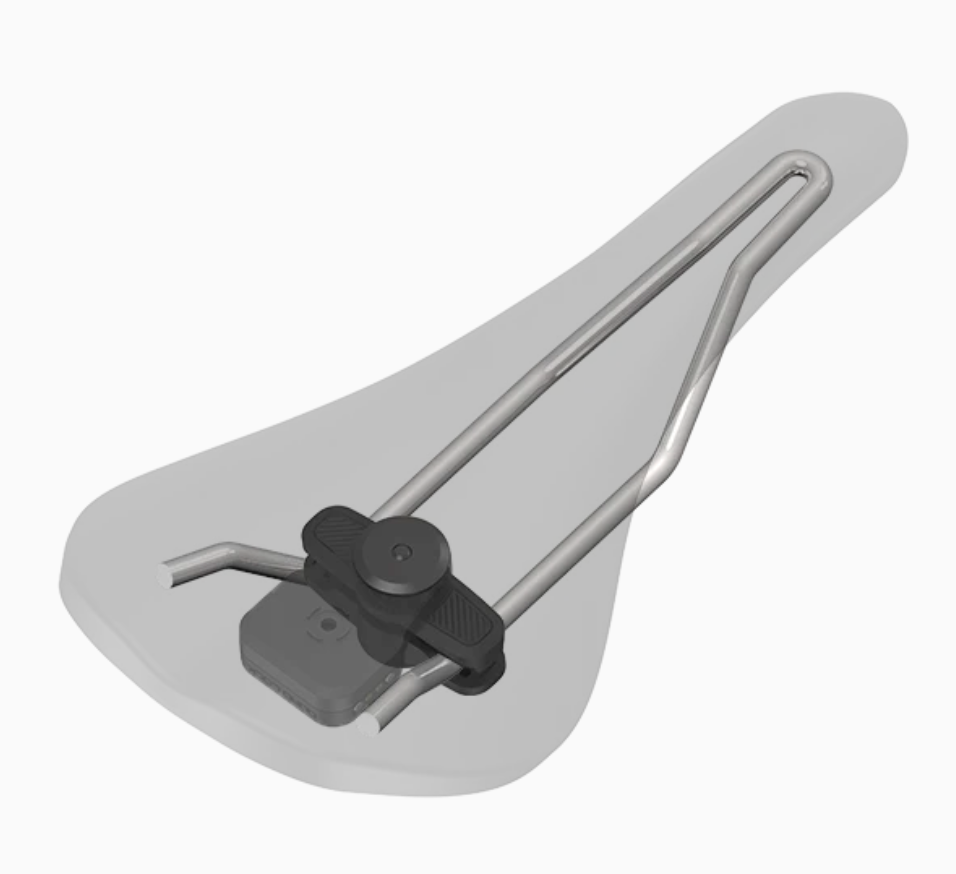

Mount the Quad Lock Bike Alarm and Finder under your saddle. It clamps to standard saddle rails and sits discreetly out of the way, with rubber grip pads to hold firm and stop rattle.
Tutorials
FAQ
What are the limitations of this adaptor

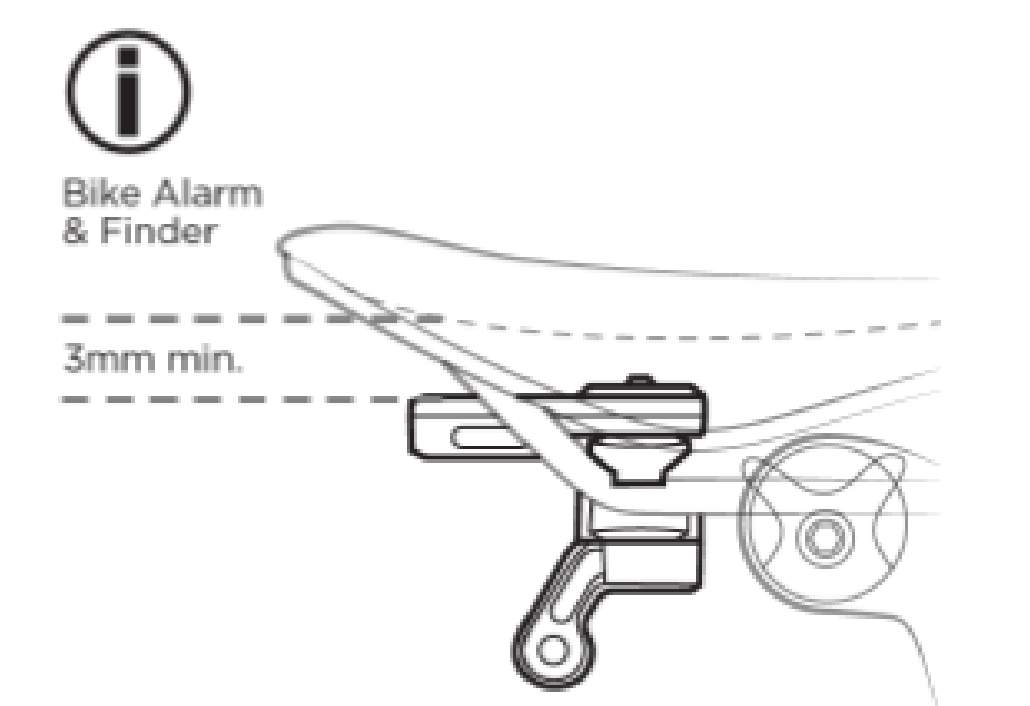

Bike Alarm & Finder – Installation Clearance
When installing your Bike Alarm & Finder, make sure there is at least a 3mm gap between the sound outlet and the underside of your saddle. This helps ensure the alarm can be heard at its intended volume.

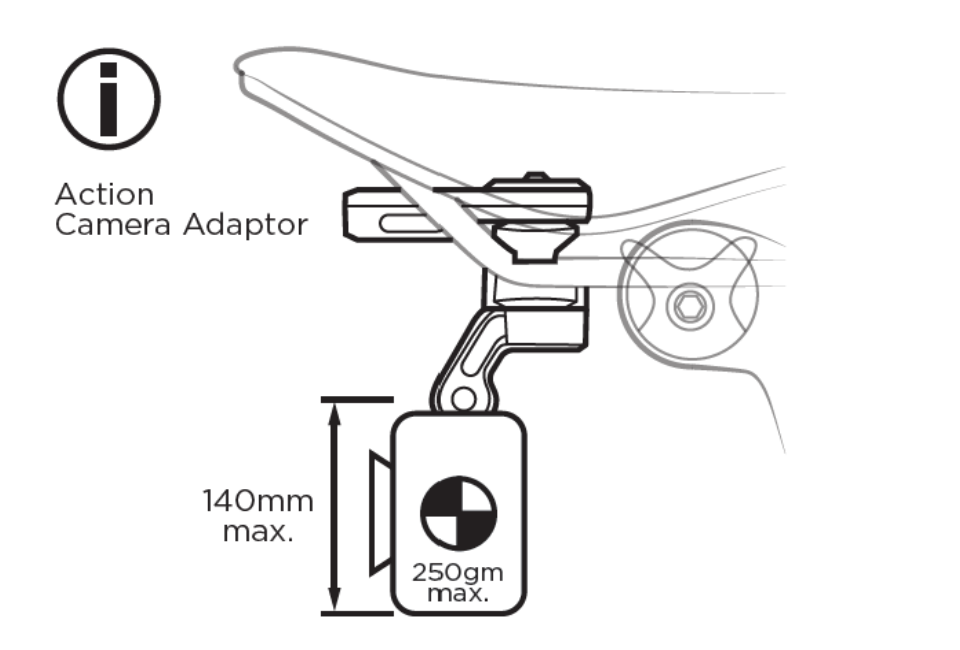

Saddle Rail Adaptor + Bottle Cage Adaptor – Accessory Limits
If you're mounting a light, camera, radar or similar accessory using the Saddle Rail Adaptor + Bottle Cage Adaptor combination, make sure the accessory does not exceed the maximum length and weight shown below.

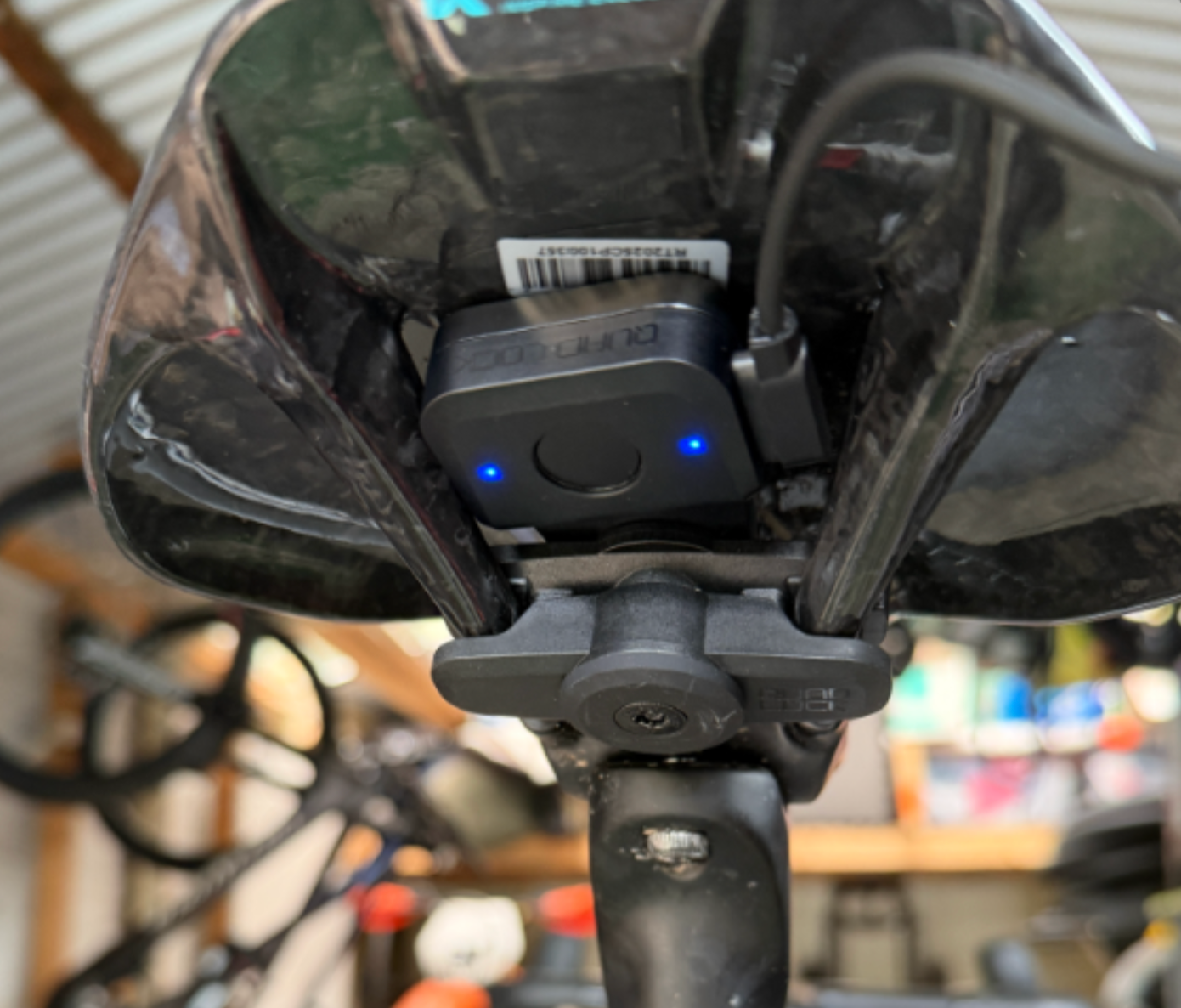

Charge Cable Clearance
Some saddles may have limited space for connecting the charge cable. If you can't easily connect the cable, slightly loosen the central screw and reposition the assembly until there is enough clearance. See the example below.
Tech Specs
Tech Specs
SADDLE RAIL ADAPTOR
- Fits standard 44mm saddle rails
- Rubber grip pads reduce rattle and grip the rails securely
- Reinforced Nylon, TPU and aluminium
- Dimensions: 63 x 25 x 32mm (2.48 x 0.98 x 1.26 in)
- Weight: 32g (1.13 oz)
- Compatible with the Bike Alarm and Finder. See Compatibility for full details

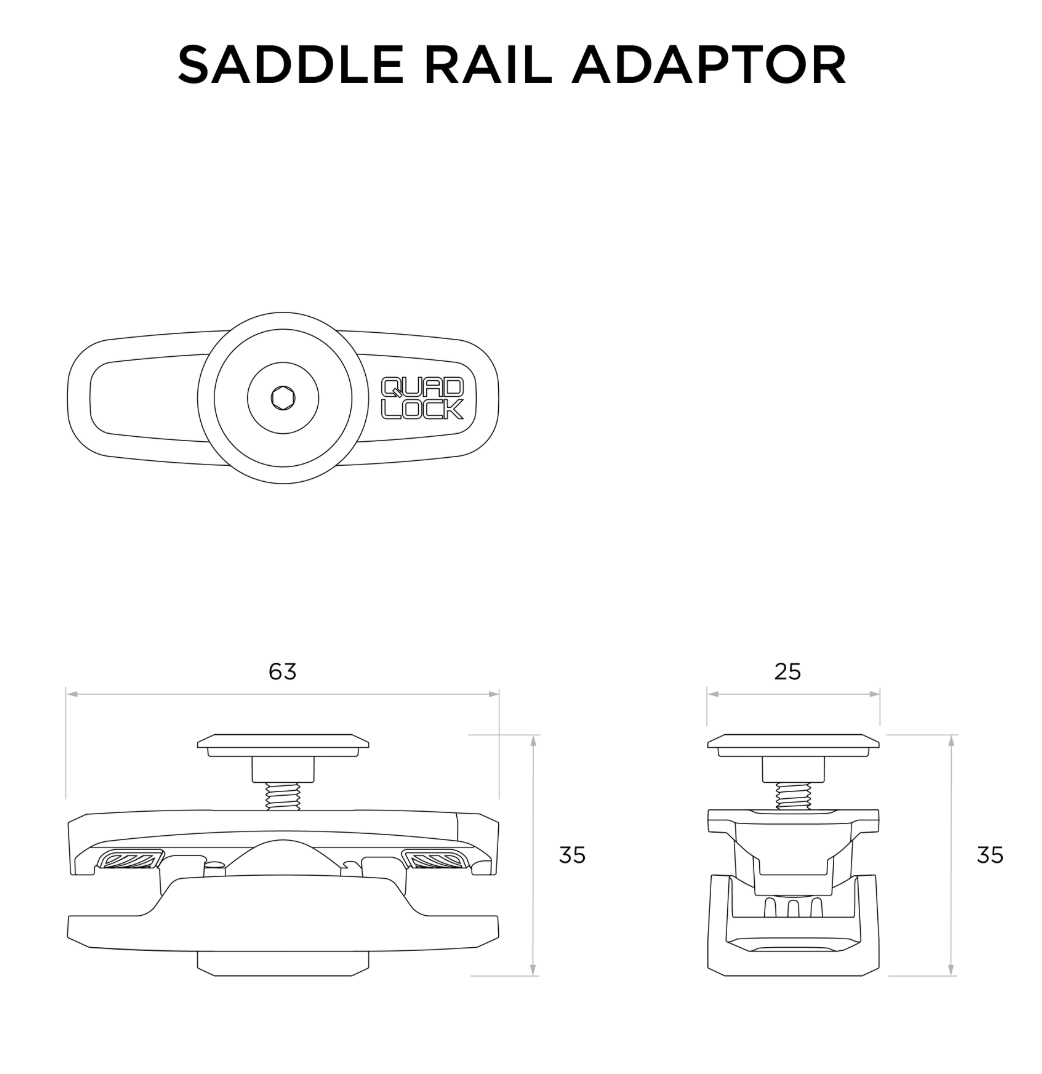

Dimensions
All dimensions in mm
