Bottle Cage Adaptor

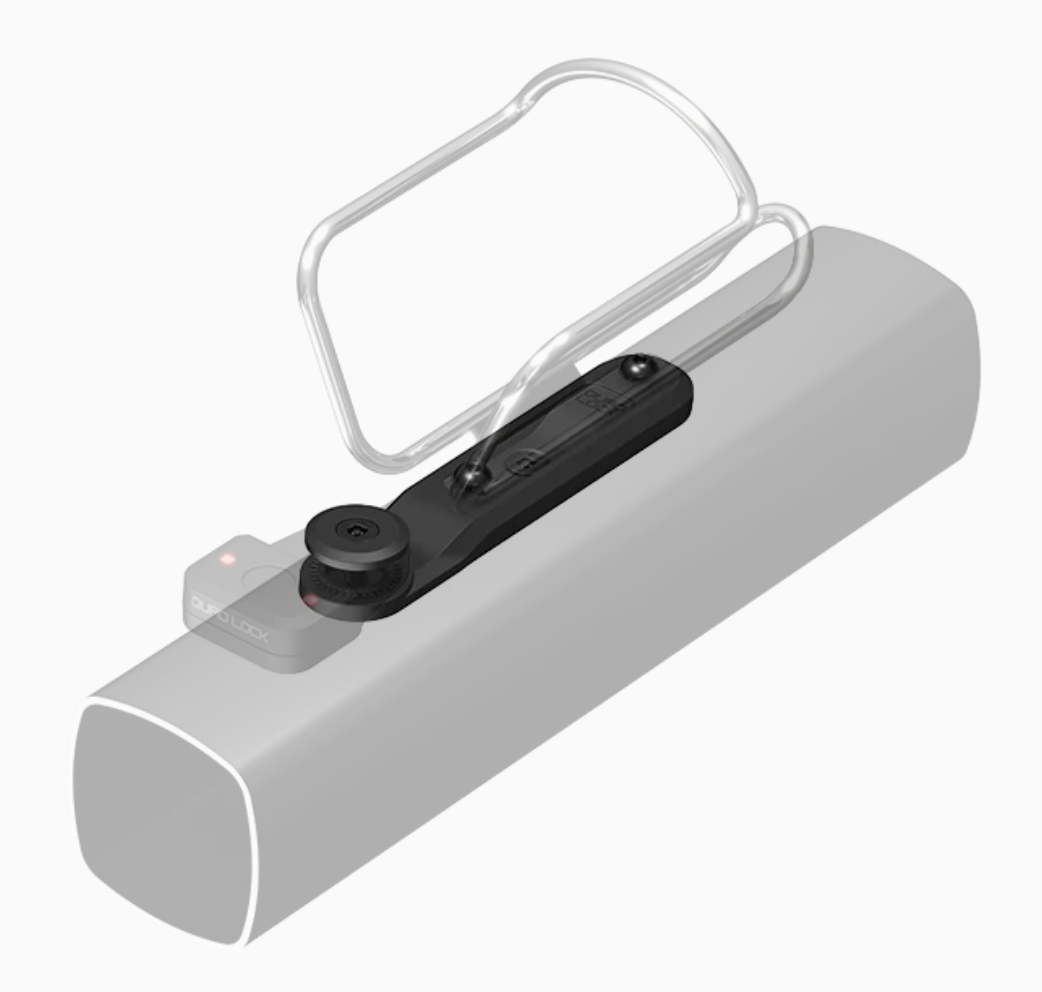

Mount the Quad Lock Bike Alarm and Finder to the bottle cage mounting points on your frame with the Bottle Cage Adaptor. It fits standard 64mm spacing, with your cage on top and the alarm held below.
Tutorials
FAQ
Will the Bottle Cage Adaptor fit my bottle cage?
Bottle Cage Compatibility – Tail Section Length
Some bottle cages have longer tail sections that may press against the Bike Alarm & Finder or prevent the cage from sitting flat on the Adaptor. Use the guide below to check compatibility.

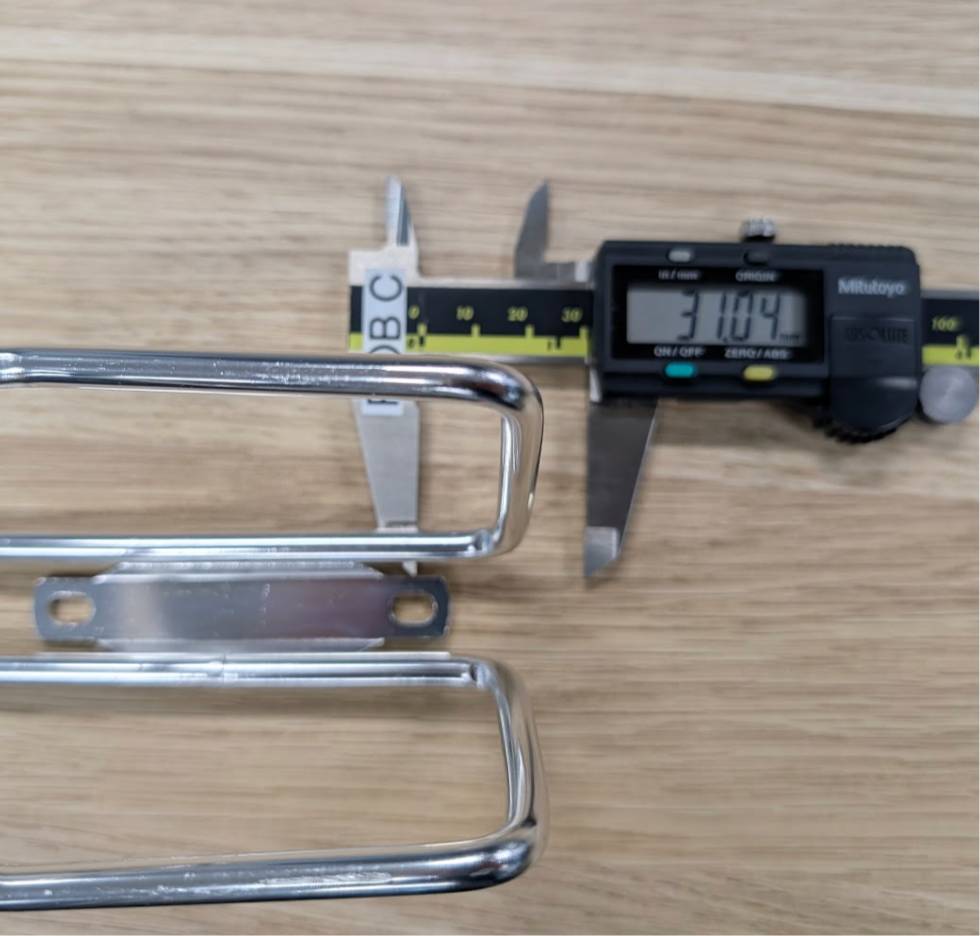

Measure from the base of the bottle cage to the centre of the lower mounting hole. This distance should be no more than 31mm. This is compatible with approximately 90% of bottle cages on the market.

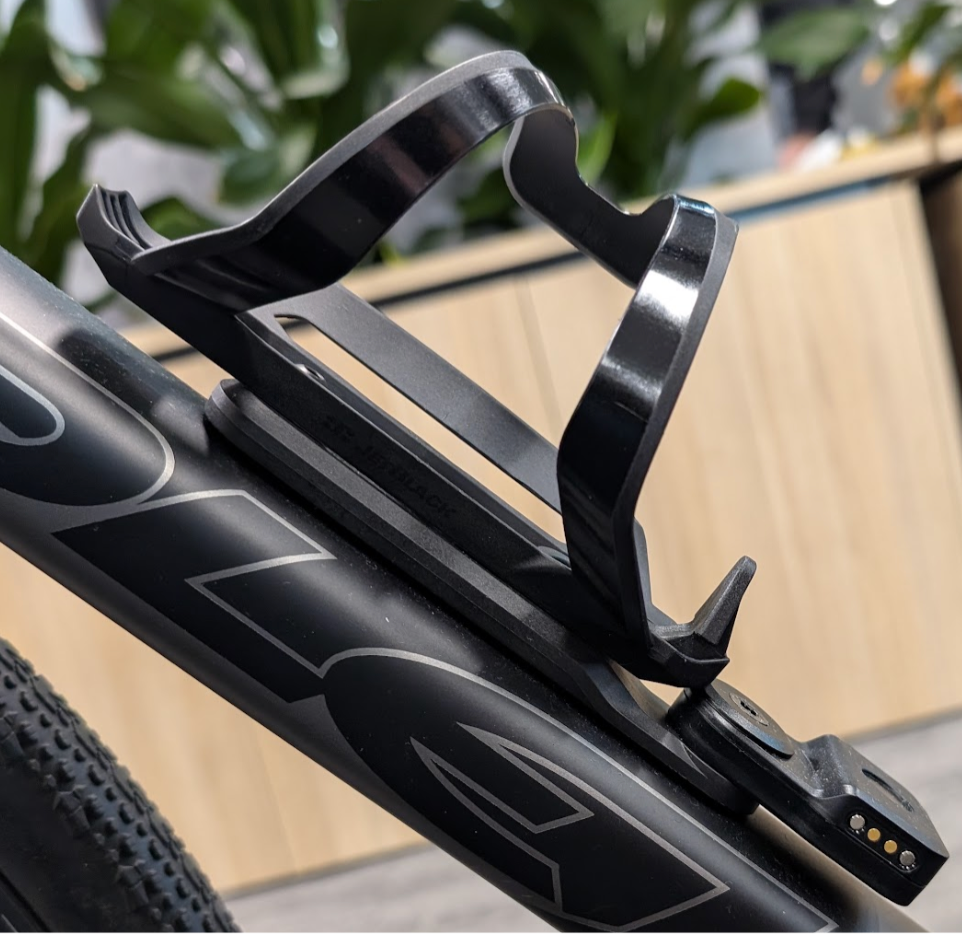

COMPATIBLE

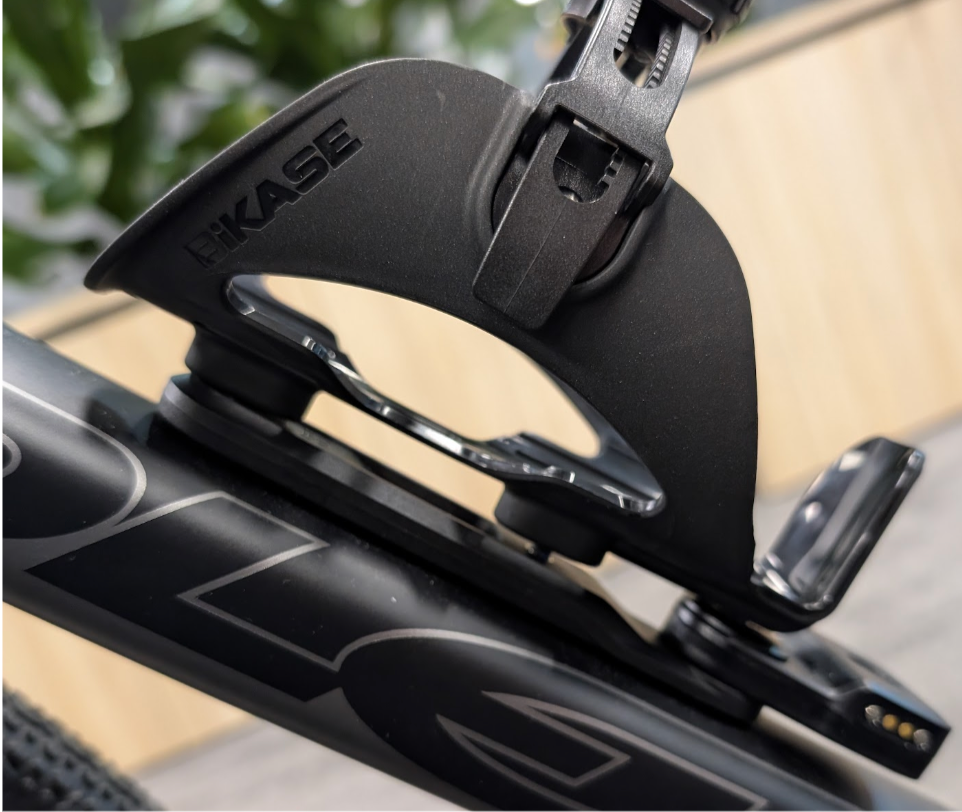

NOT COMPATIBLE – Bottle Cage Does Not Sit Flat or Presses Against the Bike Alarm & Finder
Why can’t I use the original screws that came with my Bottle Cage?
We recommend using the screws included with the Bottle Cage Adaptor, as they are the correct length for installing your Bottle Cage with the Adaptor.
Using the original Bottle Cage screws may cause them to extend too far and come into contact with your bike frame, which could result in damage.
How much thickness does the Bottle Cage Adaptor add between my bike frame and bottle cage?
The Bottle Cage Adaptor is low profile, with dimensions of 135 x 42 x 9mm (5.31 x 1.65 x 0.35 in), so it is 9mm (0.35 in) thick.
It fits standard 64mm bottle cage mounting points and frees up to 44mm (1.73 in) of space for your bottle cage. Use the included screws to mount your bottle cage, as they're the correct length for this setup.
What's included with the Bottle Cage Adaptor?
The Bottle Cage Adaptor comes with:
- 1 x Bottle Cage Adaptor
- 1 x 360 Cover Cap
- M5 x 10mm button head screws (for your bottle cage)
- 1 x Hex drive key
- 1 x M5 x 16 tamper-resistant socket head cap screw
- 1 x M5 x 25 tamper-resistant socket head cap screw
- 1 x Tamper-resistant drive key
Use the included screws to mount your bottle cage, as they're the correct length for this setup.
Does the Bottle Cage Adaptor come with screws to mount the Bike Alarm & Finder?
Bottle Cage comes with 2 x M5 x 10mm Button Head Screws and Anti-Theft Screws
- 1 x M5 x 16mm Countersunk
- 1 x M5 x 25mm Countersunk
These are used to screw the Bottle Cage Adaptor onto the bike.
The Bike Alarm & Finder is sold separately and comes with its own screws.
Tech Specs
Tech Specs
BOTTLE CAGE ADAPTOR
- Fits standard 64mm bottle cage mounting points
- Frees up to 44mm (1.73 in) of space for your bottle cage
- Low profile and lightweight
- Nylon and aluminium
- Dimensions: 135 x 42 x 9mm (5.31 x 1.65 x 0.35 in)
- Weight: 37g (1.31 oz)
- Compatible with the Bike Alarm and Finder
PLEASE NOTE:
Fits most bottle cages. Some cages with a long tail section may not sit flat.
Use the included screws to mount your bottle cage. They're the correct length for this setup.

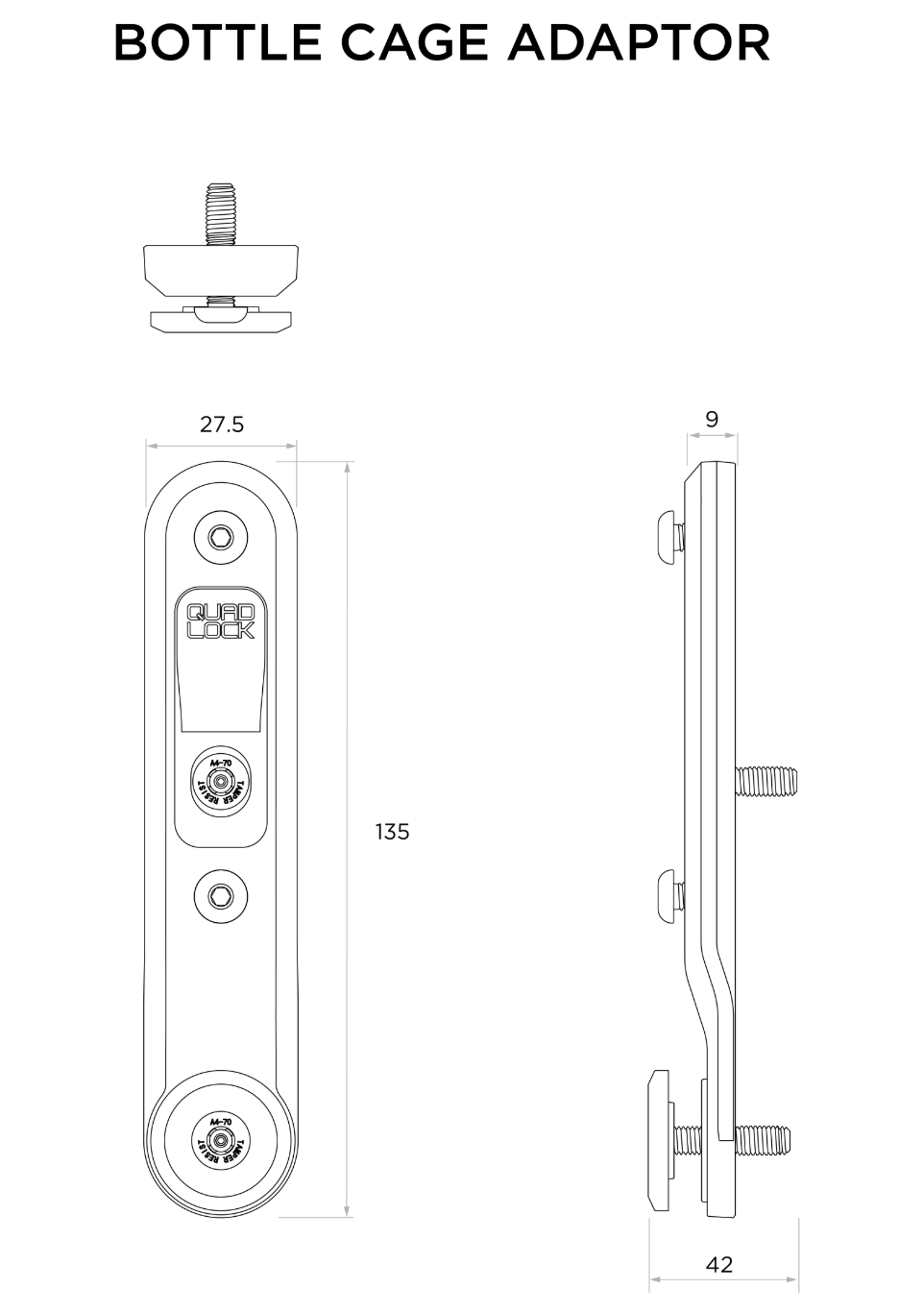

Dimensions
All dimensions in mm
